Description
A New Generation Duct Liner

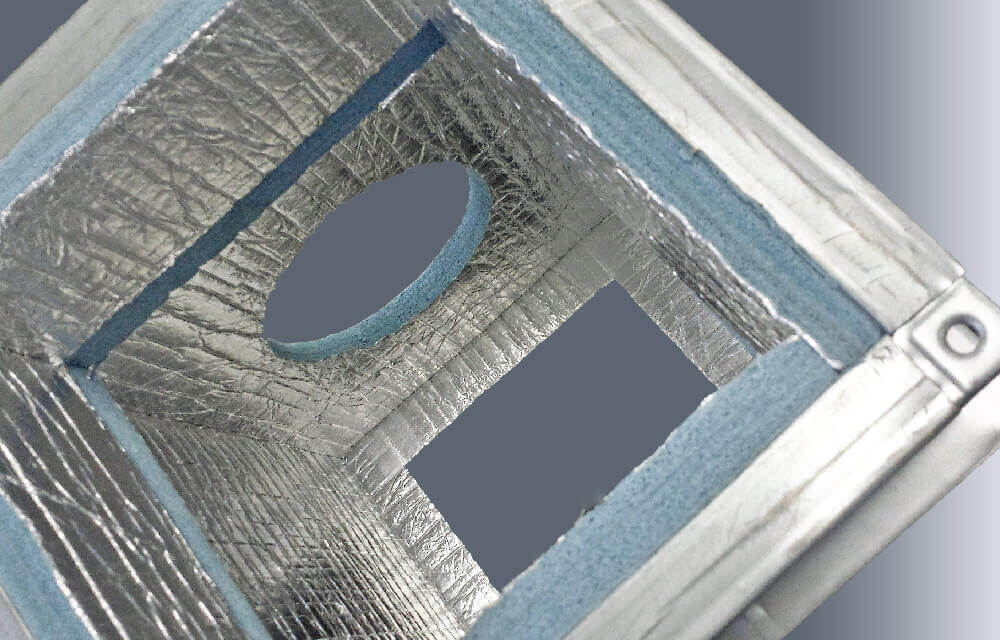

Thermobreak® AcoustiPlus is a new generation physically cross-linked polyolefin foam based duct liner. It is fibre-free and meets international fire and smoke standards. It demonstrates excellent acoustic properties, even at low thicknesses. It has extremely low water absorption thus preventing bacterial growth and odours commonly associated with fibrous based duct lining. Thermobreak AcoustiPlus is supplied with reinforced aluminium foil and is available with a pressure sensitive adhesive backing.
Compliance to International Fire & Smoke Standards
Thermobreak® Acoustiplus complies with major international fire and smoke standards
• British Standard BS 476 (Class 0);
• Australian Standard AS 1530.3;
• ASTM E84 (25/50)
Engineered To Perform
Thermobreak AcoustiPlus solves tight clearance issues by providing excellent acoustic absorption, very low thermal conductivity and low water
vapour permeance at a low thickness. Thermobreak Acoustiplus is easy to cut, available with a repositionable adhesive backing and fibre free
resulting in a fast, easy and mess free install.
Software Design Selection
AcoustiCalc computer selection program provides noise reduction analysis based on dB input, insulation thickness and length of duct lining.
Health, Safety & the Environment
• Completely user friendly and does not emit fibres or dust during installation or in service.
• Non-irritant, odourless and does not support bacterial growth.
• Anti-Microbial & Low VOC for improved indoor air quality.
• Green Star compliant, Zero Global Warming Potential (GWP), made without ozone destroying agents such as CFCs or HCFCs.
• Manufactured under a certified ISO 14001 Environmental Management System.
Burjeel Medical City Abu Dhabi, UAE JW Marriott Phu Quoc, Vietnam.
Acoustic Insulation
